10G SFP BIDI 40km

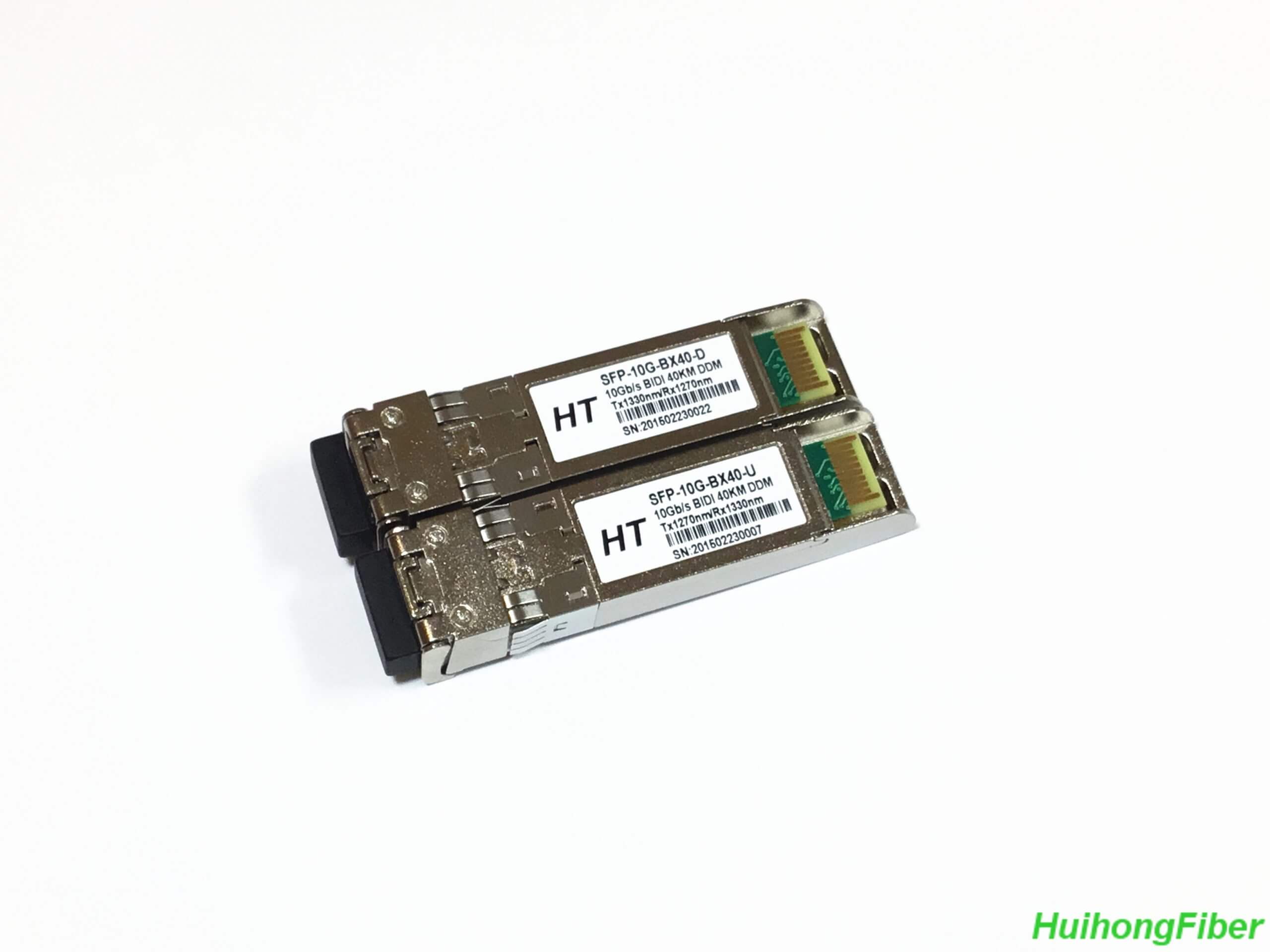

10G SFP BIDI 40km transceiver SFP-10G-BX40-SM1270 & SFP-10G-BX40-SM1330 Bi-directional 10Gb/s (SFP+) are compliant with the current SFP+ Multi-Source Agreement (MSA) Specification. They comply with 10GBASE-LR/LW Ethernet, SONET OC-192 / SDH and 10G Fiber Channel 1200-SM-LL-L. 10G SFP BIDI 40km transceiver Digital diagnostics functions are available via a 2-wire serial interface, as specified in the SFP+ MSA.

10G SFP BIDI 40km Features:
Supports 9.95Gb/s to 11.3Gb/s bit rates
Hot-pluggable SFP+ footprint
Single LC for Bi-directional Transmission
Maximum link length of 40km
Built-in 1270/1330 WDM Filter
Uncooled 1270nm or 1330nm CWDM DFB Laser.
Power dissipation <1.5W
No Reference Clock required
Built-in digital diagnostic functions
Temperature range 0°C to 70°C
Very low EMI and excellent ESD protection
RoHS Compliant Part

10G SFP BIDI 40km Applications:
10GBASE-LR/LW Ethernet
SONET OC-192 / SDH
10G Fiber Channel

  • Absolute Maximum Ratings
Parameter Symbol Min. Typical Max. Unit
Storage Temperature TS -40 +85 °C
Supply Voltage VCCT, R -0.5 4 V
Relative Humidity RH 0 85 %
  • Recommended Operating Environment:
Parameter Symbol Min. Typical Max. Unit
Case operating Temperature TC -5 +70 °C
Supply Voltage VCCT, R +3.135 +3.465 V
Supply Current ICC 450 mA
Power Dissipation PD 1.5 W
  • Electrical Characteristics (TOP = 0 to 70 °C, VCC = 3.135 to 3.465 Volts)
Parameter Symbol Min Typ Max Unit Note
Transmitter:
Differential input voltage swing 180 700 mVpp 1
Transmit Disable Input H VIH 2.0 Vcc+0.3 V
L VIL 0 0.8 V
Transmit Enable Output H VOH 2.4 Vcc+0.3 V
L VOL 0 0.4 V 2
Input Differential Impedance Zin 80 100 120 Ω
Receiver
Differential output voltage swing 300 850 mVpp 3
LOS Output H VOH 2.4 Vcc+0.3 V 2
L VOL 0 0.4 V
Output Differential Impedance Zon 80 100 120 Ω

Notes:

Note 1) TD+/- are internally AC coupled with 100Ω differential termination inside the module.

Note 2) Tx Fault and Rx LOS are open collector outputs, which should be pulled up with 4.7k to 10kΩ resistors on the host board. Pull up voltage between 2.0V and Vcc+0.3V.

Note 3) RD+/- outputs are internally AC coupled, and should be terminated with 100Ω (differential) at the user SERDES.

  • Optical Parameters(TOP = 0 to 70°C, VCC = 3.135 to 3.465 Volts)
Parameter Symbol Min Typ Max Unit Ref.
Transmitter
Bit Rate BR 9.9 11.3 Gb/s
Optical Wavelength SFP-10G-BX40-SM1270 λ 1260 1270 1280 nm
SFP-10G-BX40-SM1330 1320 1330 1340
Average output power Po 0 +5 dBm
Optical Extinction Ratio ER 3.5 dB
Spectral width Δλ 1 nm
Side Mode Suppression Ratio SMSR 30 dB
Optical Eye Mask Compliant with IEEE802.3ae
Receiver
Bit Rate BR 9.9 11.3 Gb/s
Optical Wavelength SFP-10G-BX40-SM1330 λ 1320 1330 1340 nm
SFP-10G-BX40-SM1270 1260 1270 1280
Receiver Sensitivity Sen -16 dBm 1
Maximum Input Power PMAX 0 dBm
LOS De-Assert LOSD -17 dBm
LOS Assert LOSA -27 dBm
LOS Hysteresis LOSH 0.5 4 dB

Notes:

Note 1) Measured with a PRBS of 231-1 at 1 x 10-12 BER and 3.5 dB extinction ratio.

  • Pin Assignment

Diagram of Host Board Connector Block Pin Numbers and Name

  • Pin Function Definitions
PIN # Name Function Notes
1 VeeT Module transmitter ground 1
2 Tx Fault Module transmitter fault 2
3 Tx Disable Transmitter Disable; Turns off transmitter laser output 3
4 SDL 2 wire serial interface data input/output (SDA)
5 SCL 2 wire serial interface clock input (SCL)
6 MOD-ABS Module Absent, connect to VeeR or VeeT in the module 2
7 RS0 Rate select0, optionally control SFP+ receiver. When high, input data rate >4.5Gb/s; when low, input data rate <=4.5Gb/s
8 LOS Receiver Loss of Signal Indication 4
9 RS1 Rate select0, optionally control SFP+ transmitter. When high, input data rate >4.5Gb/s; when low, input data rate <=4.5Gb/s
10 VeeR Module receiver ground 1
11 VeeR Module receiver ground 1
12 RD- Receiver inverted data out put
13 RD+ Receiver non-inverted data out put
14 VeeR Module receiver ground 1
15 VccR Module receiver 3.3V supply
16 VccT Module transmitter 3.3V supply
17 VeeT Module transmitter ground 1
18 TD+ Transmitter inverted data out put
19 TD- Transmitter non-inverted data out put
20 VeeT Module transmitter ground 1

Note 1) The module ground pins shall be isolated from the module case.

Note 2) This pin is an open collector/drain output pin and shall be pulled up with 4.7K-10Kohms to Host_Vcc on the host board.

Note 3) This pin shall be pulled up with 4.7K-10Kohms to VccT in the module.

Note 4) This pin is an open collector/drain output pin and shall be pulled up with 4.7K-10Kohms to Host_Vcc on the host board.

  • SFP Module EEPROM Information and Management

The SFP modules implement the 2-wire serial communication protocol as defined in the SFP -8472. The serial ID information of the SFP modules and Digital Diagnostic Monitor parameters can be accessed through the I2C interface at address A0h and A2h. The memory is mapped in Table 1. Detailed ID information (A0h) is listed in Table 2. And the DDM specification at address A2h. For more details of the memory map and byte definitions, please refer to the SFF-8472, “Digital Diagnostic Monitoring Interface for Optical Transceivers”. The DDM parameters have been internally calibrated.

Table 1. Digital Diagnostic Memory Map (Specific Data Field Descriptions)

Table 2 – EEPROM Serial ID Memory Contents (A0h)

Data Address

Length

(Byte)

Name of

Length

Description and Contents
Base ID Fields
0 1 Identifier Type of Serial transceiver (03h=SFP)
1 1 Reserved Extended identifier of type serial transceiver (04h)
2 1 Connector Code of optical connector type (07=LC)
3-10 8 Transceiver 10G Base-LR
11 1 Encoding 64B/66B
12 1 BR, Nominal Nominal baud rate, unit of 100Mbps
13-14 2 Reserved (0000h)
15 1 Length(9um) Link length supported for 9/125um fiber, units of 100m
16 1 Length(50um) Link length supported for 50/125um fiber, units of 10m
17 1 Length(62.5um) Link length supported for 62.5/125um fiber, units of 10m
18 1 Length(Copper) Link length supported for copper, units of meters
19 1 Reserved
20-35 16 Vendor Name SFP vendor name: Huihongfiber
36 1 Reserved
37-39 3 Vendor OUI SFP transceiver vendor OUI ID
40-55 16 Vendor PN

Part Number: “SFP-10G-BX40-SM1270”

or “SFP-10G-BX40-SM1330” (ASCII)

56-59 4 Vendor rev Revision level for part number
60-62 3 Reserved
63 1 CCID Least significant byte of sum of data in address 0-62
Extended ID Fields
64-65 2 Option

Indicates which optical SFP signals are implemented

(001Ah = LOS, TX_FAULT, TX_DISABLE all supported)

66 1 BR, max Upper bit rate margin, units of %
67 1 BR, min Lower bit rate margin, units of %
68-83 16 Vendor SN Serial number (ASCII)
84-91 8 Date code Huihongfiber’s Manufacturing date code
92-94 3 Reserved
95 1 CCEX Check code for the extended ID Fields (addresses 64 to 94)
Vendor Specific ID Fields
96-127 32 Readable Huihongfiber specific date, read only
128-255 128 Reserved Reserved for SFF-8079
  • Digital Diagnostic Monitor Characteristics
Data Address Parameter Accuracy Unit
96-97 Transceiver Internal Temperature ±3.0 °C
98-99 VCC3 Internal Supply Voltage ±3.0 %
100-101 Laser Bias Current ±10 %
102-103 Tx Output Power ±3.0 dB
104-105 Rx Input Power ±3.0 dB
  • Regulatory Compliance

The SFP-10G-BX40-SM1270/1330 complies with international Electromagnetic Compatibility (EMC) and international safety requirements and standards (see details in Table following).

Electrostatic Discharge

(ESD) to the Electrical Pins

MIL-STD-883E

Method 3015.7

Class 1(>1000 V)

Electrostatic Discharge (ESD)

to the Single LC Receptacle

IEC 61000-4-2

GR-1089-CORE

Compatible with standards

Electromagnetic

Interference (EMI)

FCC Part 15 Class B

EN55022 Class B (CISPR 22B)

VCCI Class B

Compatible with standards
Laser Eye Safety

FDA 21CFR 1040.10 and 1040.11

EN60950, EN (IEC) 60825-1,2

Compatible with Class 1 laser

product.
