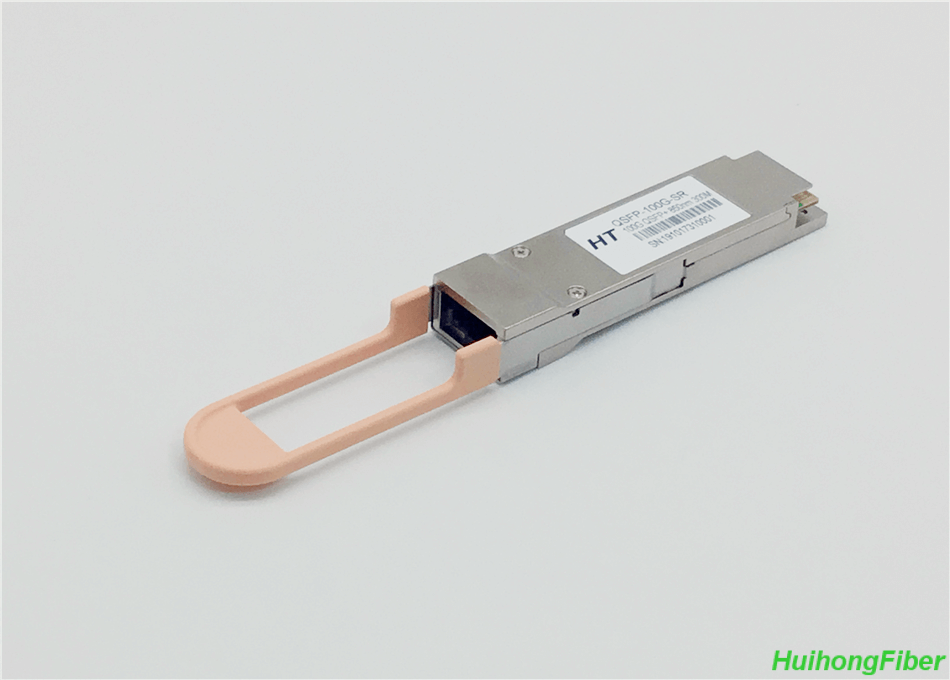

QSFP-100G-SR4-S

QSFP-100G-SR4-S Compatible 100GBASE-SR4 QSFP28 850nm 100m DOM Transceiver Module. 100G optical modules are becoming more and more widely used in enterprise data centers. With the continuous maturity of the 100G optical module industry chain, the cost of deploying 100G optical module is also much lower than in previous years. As the mainstream optical module in the optical module market, 100G QSFP28 optical module has been attracted to the advantages of small size, high rate, high density and low cost. Huihongfiber offers its customers a wide range of QSFP-100G-SR4-S optical module products through proprietary design and low-cost optical communication products.

The 100GBASE-SR4 QSFP28 optical module is a parallel 100G optical module. The QSFP28 full-duplex optical module provides four independent transmit and receive channels, each capable of 25Gbps operation at 100 meters of the OM4 MMF, with an overall data rate of 100Gbps.

When the 100GBASE-SR4 QSFP28 optical module transmits signals at the transmitting end, the electrical signals are converted into optical signals by the laser array, and then transmitted in parallel on the strip-shaped multimode optical fibers. When reaching the receiving end, the photodetector array converts the parallel optical signals to parallel electrical signals.

The 100GBASE-SR4 QSFP28 and 100GBASE-PSM4 QSFP28 optical modules are both MTP/MPO interfaces and must be used with MTP/MPO fiber jumpers. MTP/MPO fiber jumpers on the market are now mainly 12 cores and 24 cores, while 100GBASE-SR4 QSFP28 and 100GBASE-PSM4 QSFP28 optical module shipping rate of each channel can reach 28Gpbs, only 12 core MTP/ MPO fiber jumper is just right. In addition, MTP/MPO fiber jumpers have single-mode and multi-mode fractions, MTP/MPO single-mode fiber-optic jumpers have a long transmission distance, and MTP/MPO multimode fiber jumpers are suitable for short-distance transmission. The 100GBASE-SR4 QSFP28 optical module has a transmission distance of about 100m, so it is generally used with MTP/MPO multimode fiber jumpers, and the 100GBASE-PSM4 QSFP28 optical module has a transmission distance of 500m and requires and MTP/ MPO single-mode fiber jumpers are used together.

Compatible QSFP-100G-SR4-S Vendor Name Huihongfiber
Form Type QSFP28 Max Data Rate 103.1 Gbps
Wavelength 850nm Max Cable Distance 70m@OM3/100m@OM4
Connector MTP/MPO-12 Transmitter Type VCSEL 850nm
Cable Type MMF DDM/DOM Supported
TX Power -8.4~2.4dBm Receiver Sensitivity <-10.3dBm
Protocols 100G Ethernet, MSA Compliant Commercial Temperature Range 0 to 70°C (32 to 158°F)
